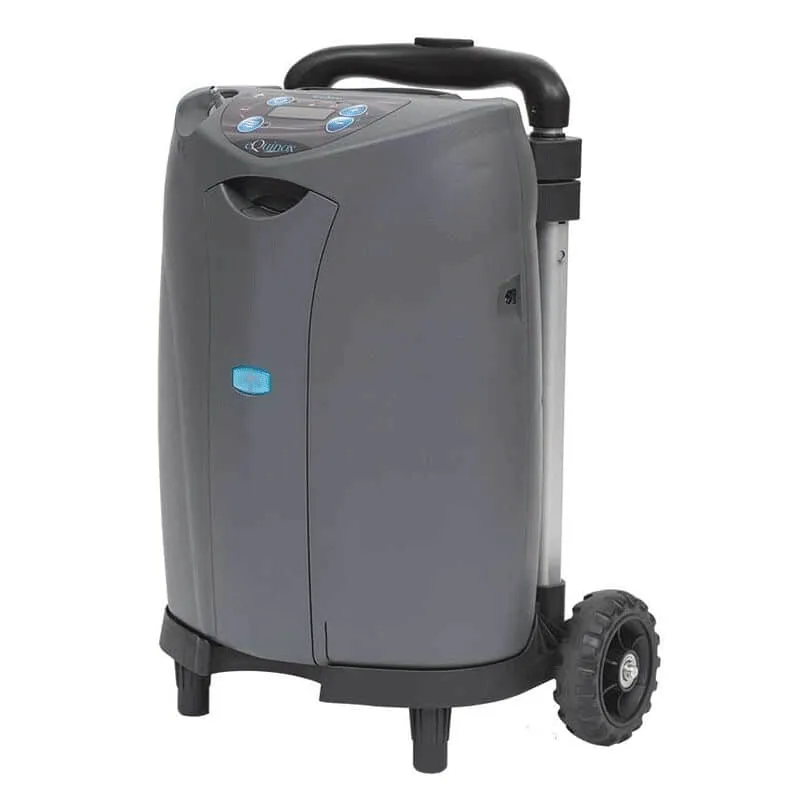

SeQual itself introduced a remarkable model eQuinox which is smaller and lighter version of Eclipse 5 with added features like Multi Language voice interface.
This package includes:
- Reconditioned eQuinox POC with 6 month warranty
- Travel Cart
- 1 double size battery
- 2 standard size battery
- AC charger for home
- DC Charger for Car
What you would like about SeQual eQuinox:
- 9 pulse settings with bolus upto 192 mL
- 2 modes: Continuous & Pulse (On demand) flow
- Multi language voice interface - machine announces key events like battery remaining, service needed,etc.
- Adjustable Rise Time
- Sensitivity adjustment
- Can be used with CPAP/ Bi Level Devices
- FAA approved – Approved for airplane use
- LCD Screen displays estimated time left on the battery
- Car charger does not have a brick like bulky transformer - It is just a wire
- AutoSat technology - machine changes the dose delivered according to patient’s needs
Size
Compact machine with the dimensions of 13.6" H x 10.6" W x 7" D.

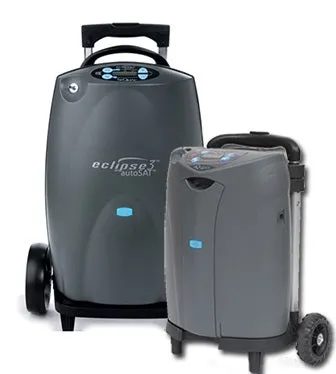

About 30% smaller than SeQual Eclipse.
Weight
Sequal eQuinox weighs 6.4 kg (14 lbs) with the 12 cell battery placed inside it.
The POC is:
- 2.2 kg lighter than DeVilbissiGo
- 2.6 kg lighter than Invacare Solo 2
- 1.9 kg lighter than SeQual Eclipse
- 2.0 kg heavier than Philips Respironics SimplyGo
SeQual has done an incredible job in retaining the features of Eclipse 5 in a much more compact body.
Flow
2 modes:
- Continuous flow
- Pulse (On demand) Flow
Continuous Flow
Provides Continuous flow from 0.5 LPM to 3 LPM with increments of 0.5.
Pulse Flow
SeQual eQuinox is the only POC in market which provides such a massive oxygen bolus. Its Pulse dose mode with 192 mL bolus is almost equivalent to the continuous flow of 7-8 LPM.
Bolus for Pulse Settings:
Setting 1 - 16 mL
Setting 2 - 32 mL
Setting 3 - 48 mL
Setting 4 - 64 mL
Setting 5 - 80 mL
Setting 6 - 96 mL
Setting 7 - 128 mL
Setting 8 - 160 mL
Setting 9 - 192 mL
Sensitivity
A remarkable feature that eQuinox has retained from Eclipse 5 is the adjustable pulse trigger sensitivity.
The SeQual eQuinox provides 3 sensitivity settings ranging from 1-3 where patients making more efforts to breath can choose high sensitivity settings.
Oxygen Purity
90% ( 5.5% / -3%) in operating range @ sea level.
Power Sources
The SeQual eQuinox POC works on 3 sources:
- Rechargeable battery
- AC Mains
- DC Source (like car charger)
Battery
Sequal eQuinox, comes with a removable standard 12 cell battery. There is an option of buying a 24 cell battery to almost double the battery duration.
| Continuous Flow | 12-Cell Battery | 24-Cell Battery |
|---|---|---|
| 0.5 | 2.48 hours | 5.28 hours |
| 1 | 2.16 hours | 4.84 hours |
| 2 | 1.21 hours | 2.75 hours |
| 3 | 0.80 hours | 1.84 hours |
| Setting | 12-Cell Battery | 24-Cell Battery |
|---|---|---|
| 16mL (1 setting) | 2.82 hours | 6.03 hours |
| 32mL (2 setting) | 2.78 hours | 5.94 hours |
| 48mL (3 setting) | 2.38 hours | 5.39 hours |
| 64mL (4 setting) | 2.31 hours | 4.94 hours |
| 80mL (5 setting) | 2.22 hours | 4.75 hours |
| 96mL (6 setting) | 1.70 hours | 3.85 hours |
| 128mL (7 setting) | 1.56 hours | 3.33 hours |
| 160mL (8 setting) | 1.28 hours | 2.72 hours |
| 192mL (9 setting) | 1 hour | 2.15 hours |
Recharge time from fully depleted state
- 1.5 hours to 3.5 hours to reach 80% charge depending on the flow setting being used.
LCD Screen
LCD Screen displays the following:
- Mode of Operation- Continuous ‘C’ or Pulse ‘P’
- The flow setting
- Estimated time left on the battery – a very useful feature.
