Portable System with Stand, 4.0kW, 1 APR
• 4.0 kW, 100 mA, 125 kVp (see power requirements below)
• High Frequency Ripple: 300 kHz
• 40 to 125 kVp in 1 kVp steps

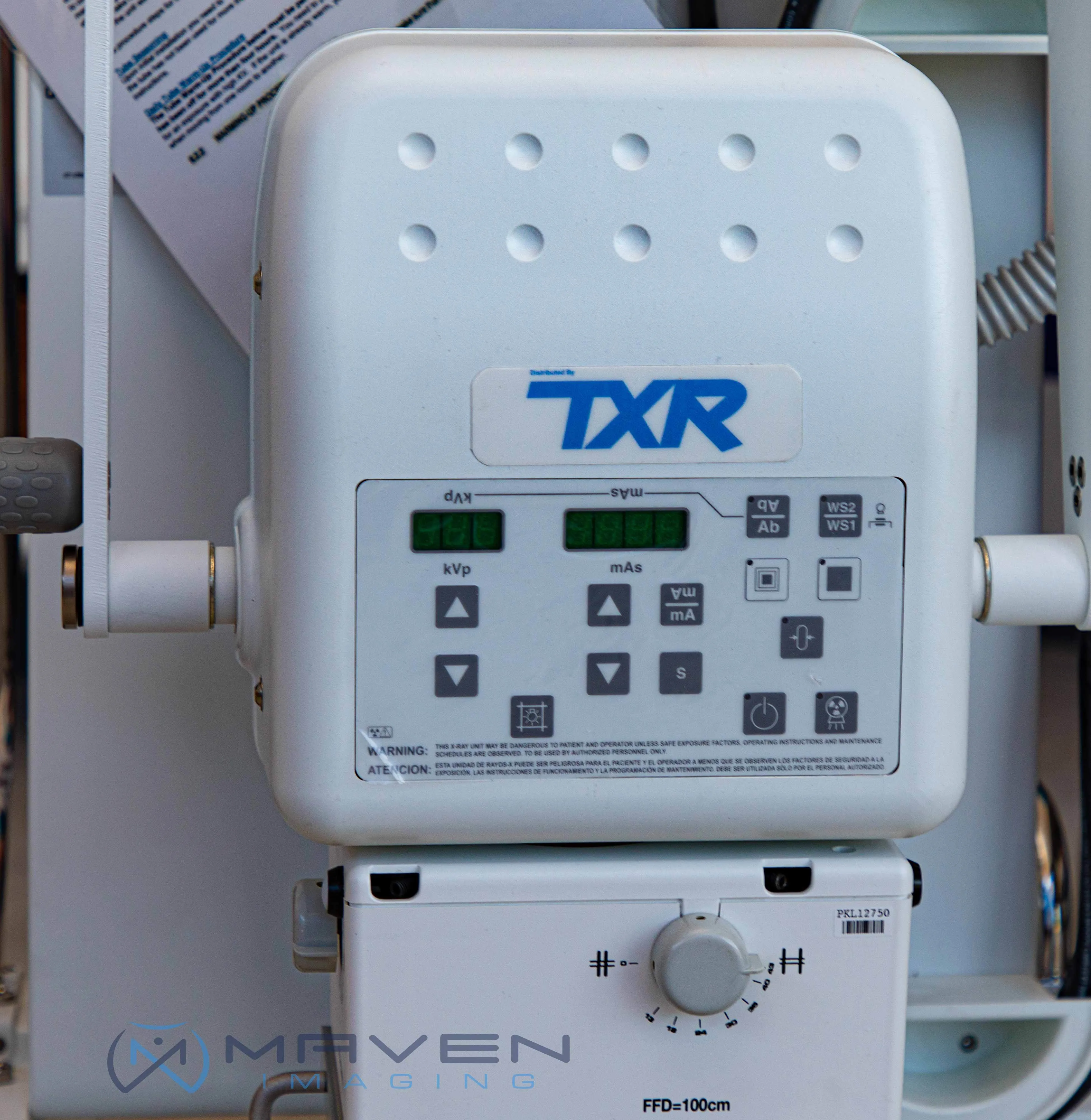

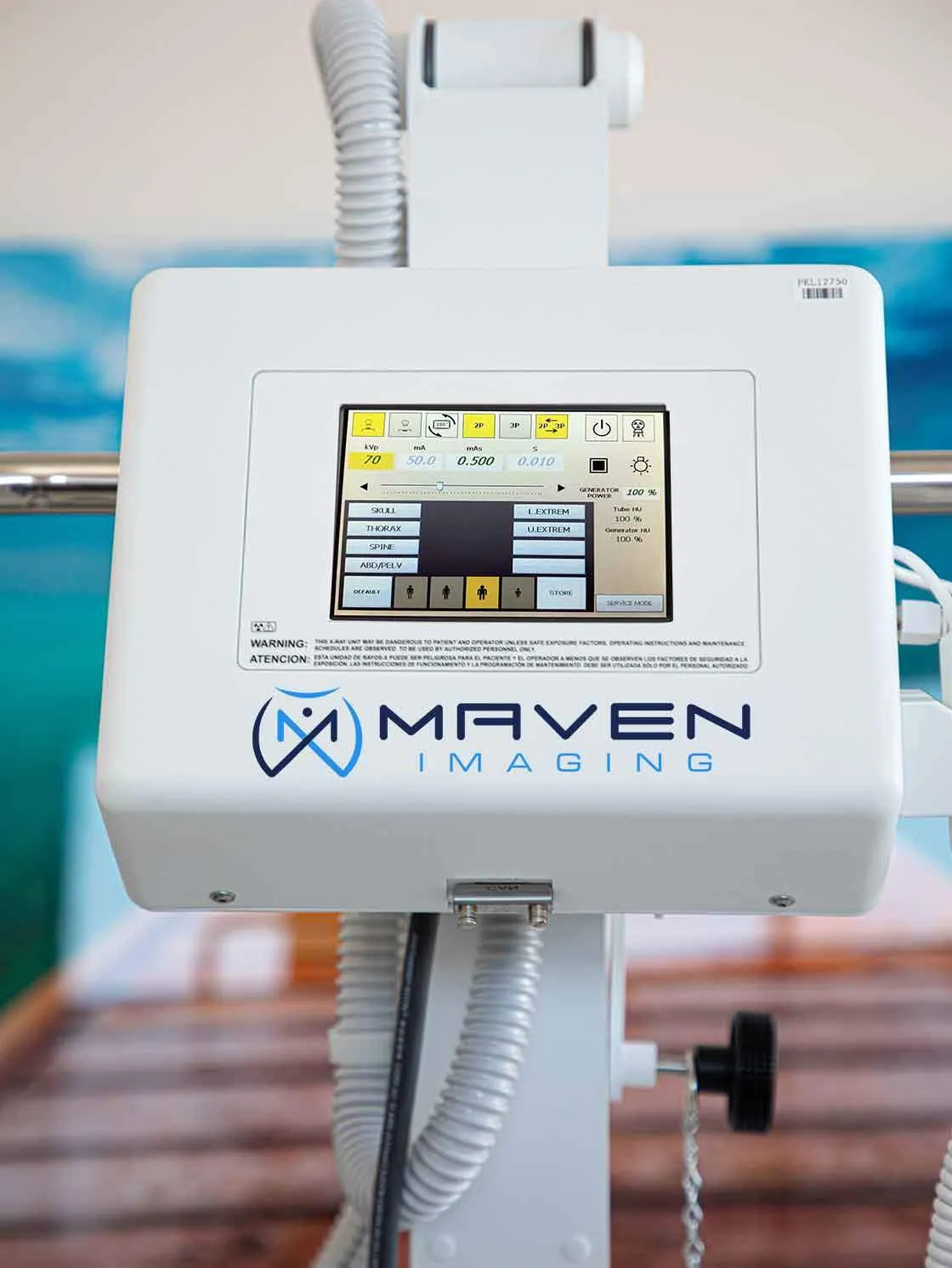

• Overlay Console allows customization of 1 APR region
(20 editable positions); 6 regions optional
• 14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50,
64, 80 and 100
• 0.001-10 second exposure time range, 41 total in 25% steps
• 0.1 to 250 mAs, 34 total in 25% steps
• 0.6mm x 1.5mm dual focus stationary anode tube, 40,000 HU
• Power Cord, 19.7' long (6 meters)
• Exposure Cord, 9.8' long (3 meters)
• Collimator, certified manual

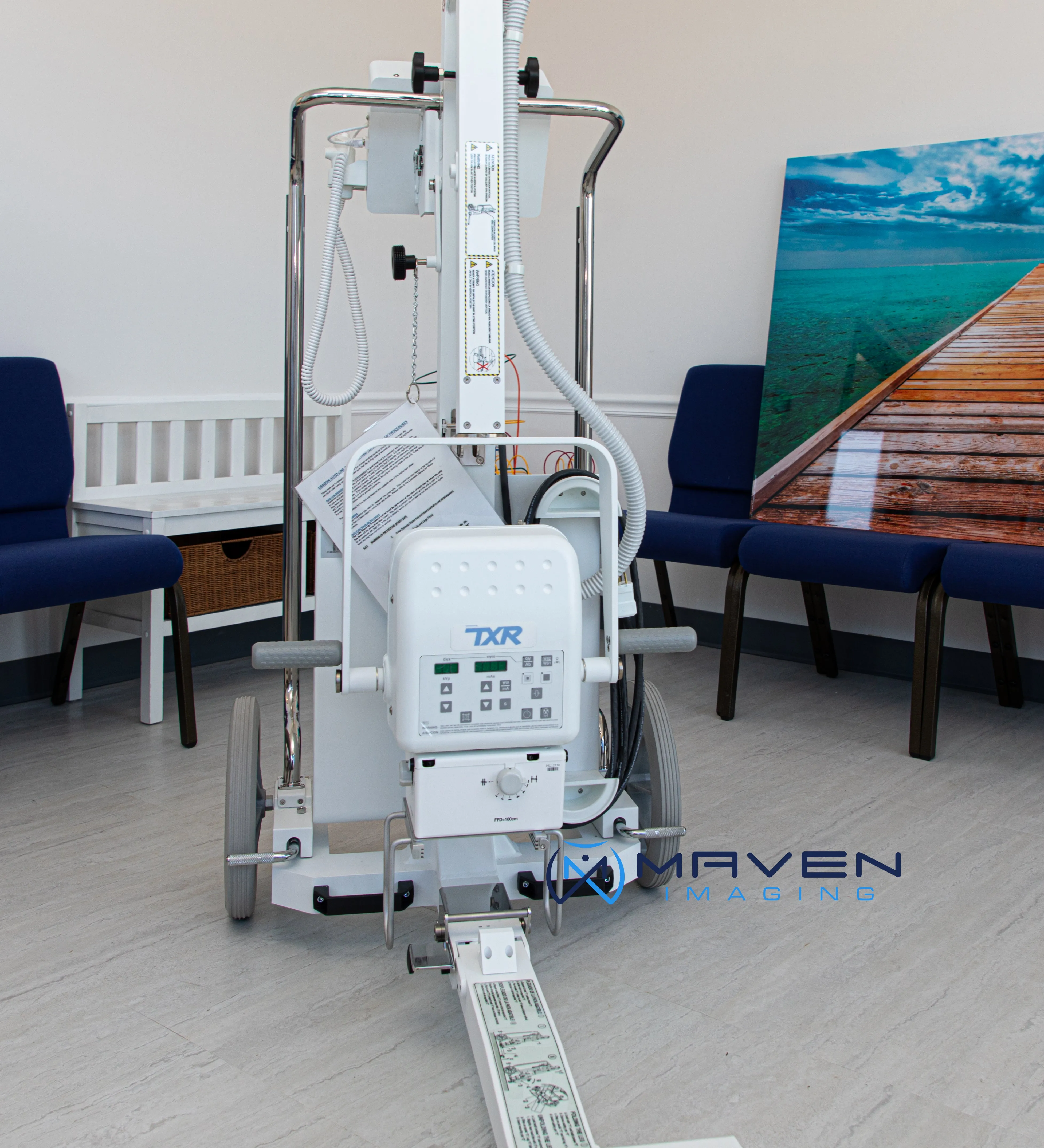

• Stand on base with wheels for easy maneuverability
• Gas spring arm supports tube to accommodate easy
positioning

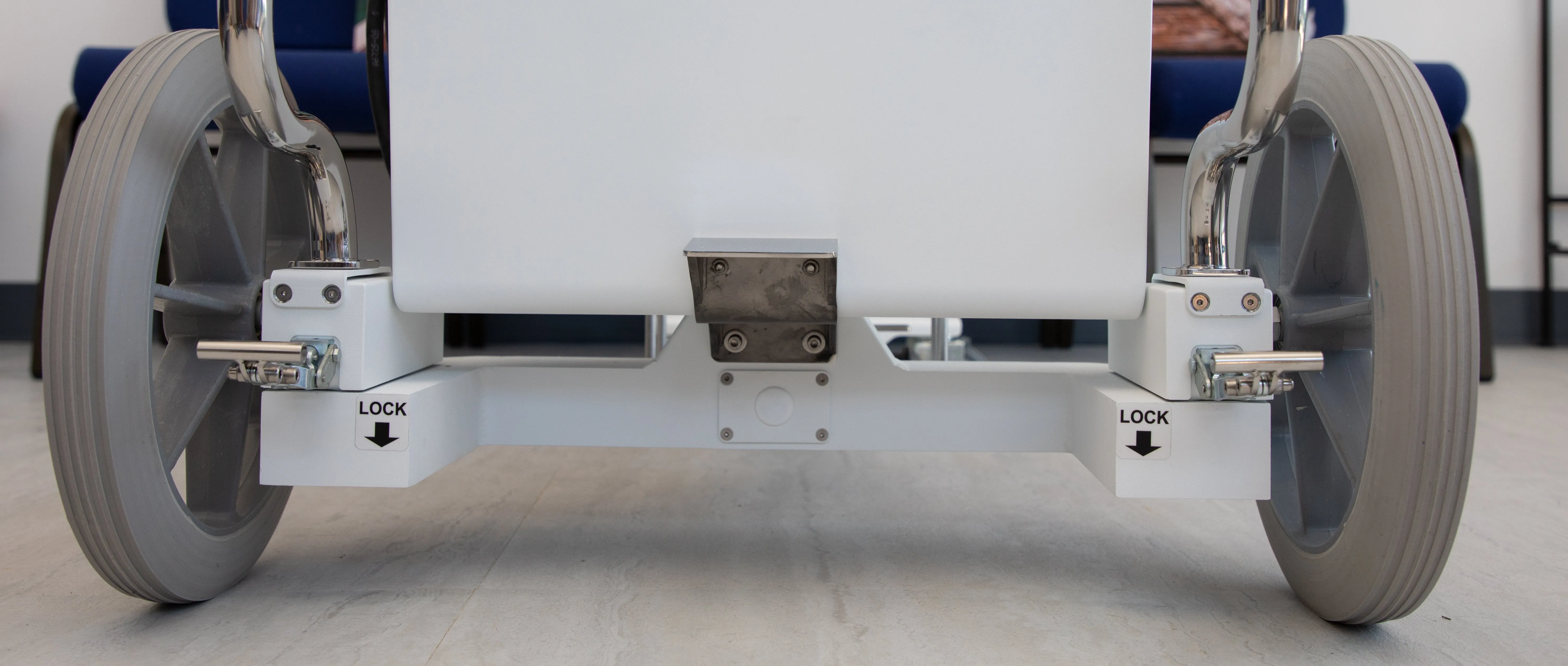

• Positive mechanical brakes
• Cassette storage box accommodates up to 8 cassettes
• Vertical tube travel, 62" (16.7"-78.7")
• 102.5 lbs total weight
• Single-phase line Automatic Regulation, Automatic Output
Power Adaptation to Power Line Conditions

 *This product has been permanently discontinued.

Replacement products available.
